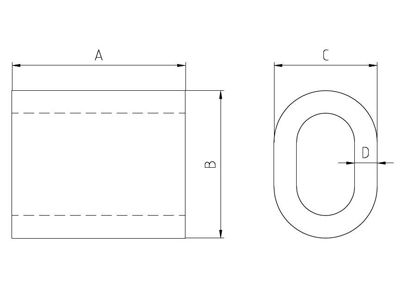

Swage Duplex Sleeves

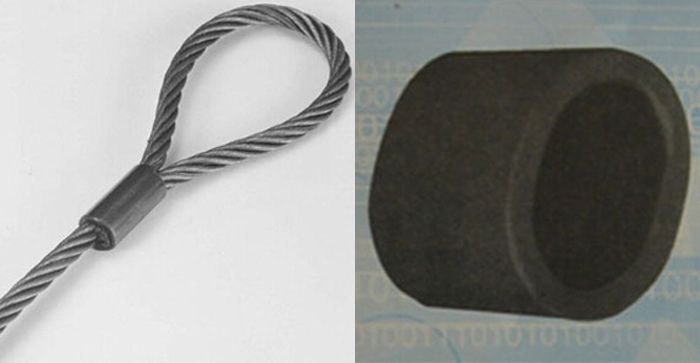

 | ● For turnback wire rope splicing ● Special processed carbon steel ● Designed for lower temperature toughness ● Resists cracking when swaged (equals or exceeds stainless steel sleeves) ● Better swageability ● Stamp for identification after swaging |
Serial No. | Rope Size | Weight Per 100 (kg) | Order No. | |
(mm) | (in.) | |||
1 | 8 | 5/16 | 7.71 | HL2000516 |
2 | 9-10 | 3/8 | 5.9 | HL2000308 |
3 | 11 | 7/16 | 14.1 | HL2000716 |
4 | 13 | 1/2 | 12.2 | HL2000102 |
5 | 14 | 9/16 | 28.6 | HL2000916 |
6 | 16 | 5/8 | 24.5 | HL2000508 |
7 | 18-20 | 3/4 | 41.3 | HL2000304 |
8 | 22 | 7/8 | 57 | HL2000708 |
9 | 25-26 | 1 | 85 | HL2010000 |
10 | 31-32 | 1-1/4 | 174 | HL2010104 |
